Open your gates with an Offision visitor badge
Your turnstile scans an Offision visitor badge, asks Offision whether it is good right now, and records the arrival. Three API calls, one credential, and a verdict you can act on rather than a state you have to interpret.
This is how a building’s own access control — a turnstile, a gate, a lobby reader, another visitor management system — works with Offision visitor management. Offision issues the badge; your reader scans it and asks Offision whether it is good right now; your system opens the barrier; and a second call records that the person walked in.

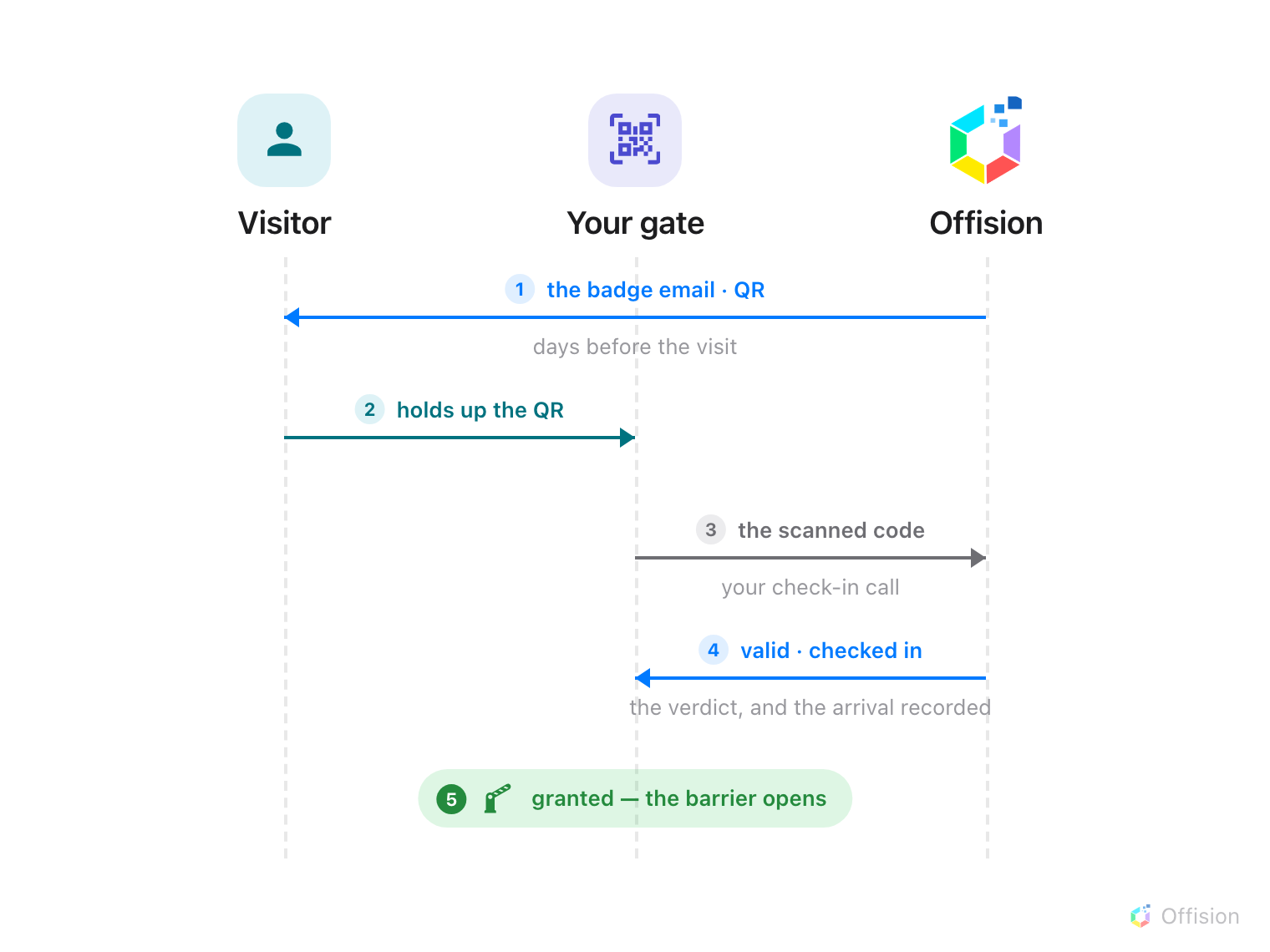

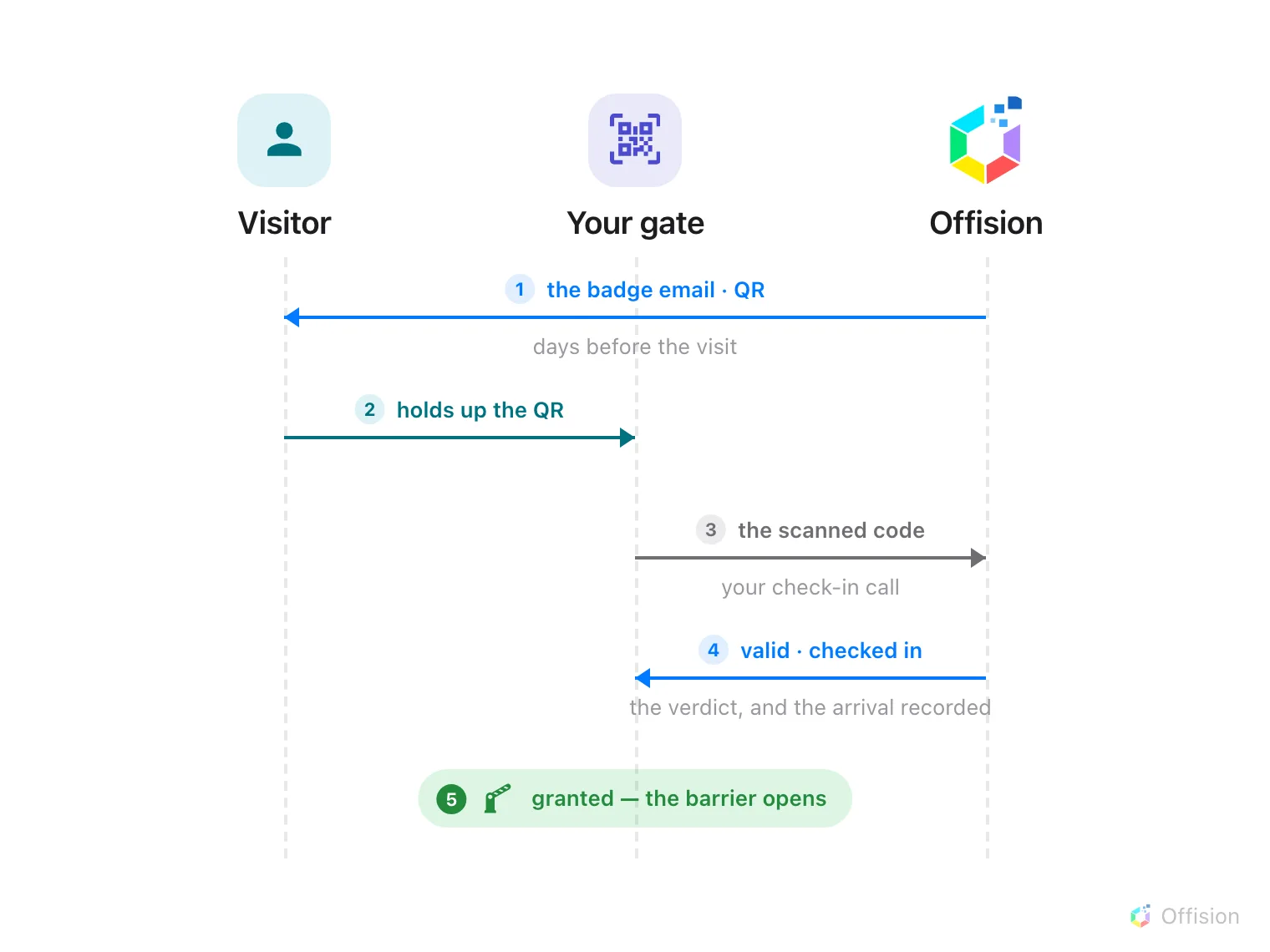

The badge reaches the visitor by email days before anyone arrives. At the barrier one call both asks the question and records the answer — your gate opens on the verdict it gets back.
What to have ready
- An access control system whose readers can call an HTTPS API when a code is scanned, and act on the answer
- The fixed outbound IP addresses that system will call from
- An hour on the Offision side, plus whatever your access control vendor’s own work takes
- A test visit already booked in Offision, so there is a real badge to scan
1. Create the API credential
Open API authenticationChoose Add. Name the credential after the system that will use it — you will be reading this name in an audit trail later, and Lobby turnstiles is easier to place than API key 3.

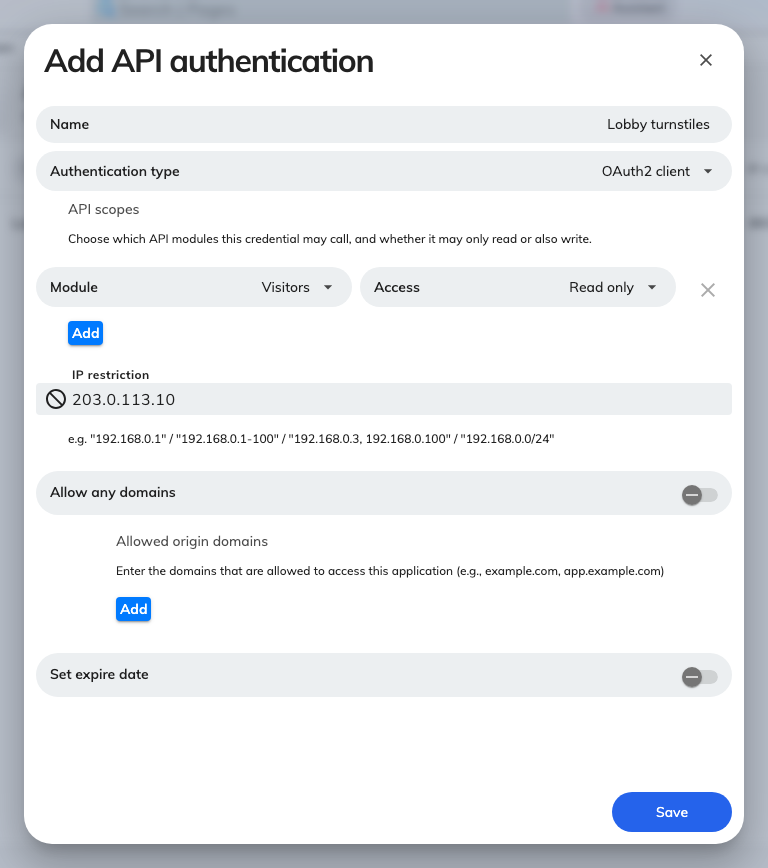

A new credential, with its API scopes and IP restriction.
API scopes are rows, each one a module plus an access level. A gate needs exactly one:
| Scope | Needed for |
|---|---|
visitor.readwrite | Checking a scanned code, and recording arrivals and departures |
Grant user.readwrite and bookableResource.read as well only if you are also doing room doors,
in step 4.
Scopes fail closed: a call into a module with no row comes back 403, and the token itself still looks perfectly valid. Fill in IP restriction with the addresses that system calls from.
The client id and client secret are not in this form — Offision generates them, and they appear in the detail panel once the credential is saved.

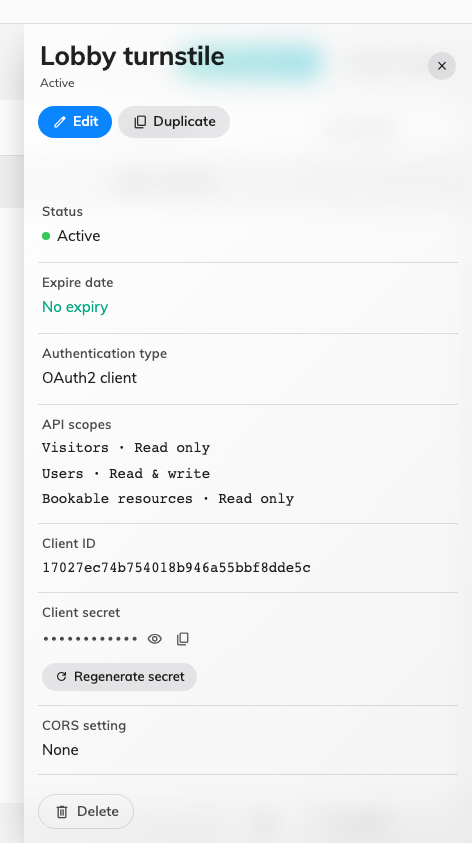

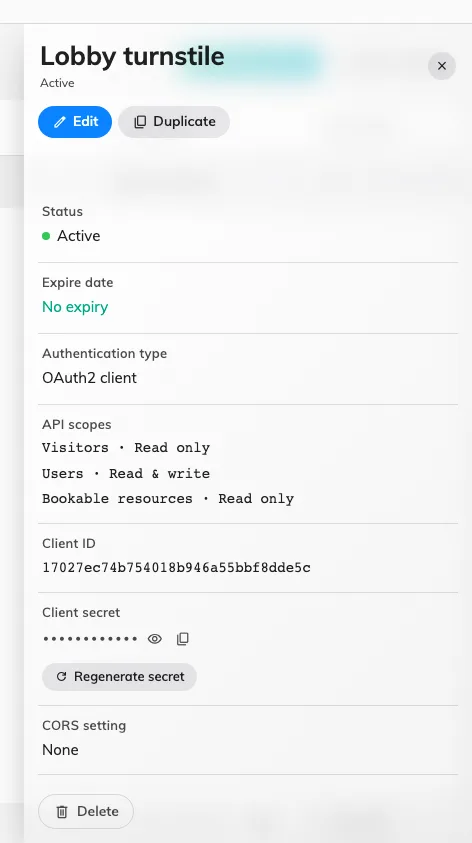

Client id and secret, with the action that mints a new secret.
Your side then exchanges those for an access token at the OAuth endpoint, with
grant_type=client_credentials, form-encoded, sending the client id and secret either as HTTP
Basic credentials or as form fields — see
the token endpoint in the API
reference.
2. Check a scanned code
Send whatever the scanner read to the verify call, along with the building the gate stands in. You do not have to work out which kind of code you are holding — the badge uid inside the QR, the six-character Visitor code printed on the badge, a code your own system issued, or an eight-digit long term badge code all resolve the same way.
The answer is a verdict, not a state to interpret:
verify | What it means |
|---|---|
valid | Good now, at this building |
notYetValid | A real badge, but the visit has not started |
expired | The visit has passed |
cancelled | The visit or the badge was cancelled — or the badge is still waiting for a code from your own system |
rejected | An approver turned this visitor down |
waitingForApproval | Nobody has approved this visitor yet |
wrongLocation | A real, live badge — for a different building |
alreadyCheckedOut | This visitor has already left |
notFound | The code matches nothing |
Alongside it comes isGranted, which is the field your barrier actually acts on, and the visitor
and badge behind the code, so the screen beside the gate can show a name rather than a code.
3. Record the arrival
The check above changes nothing. Skip this step and every badge sits at Await forever: reception never sees the visitor arrive, the host is never told, and the visit reports stay empty.
The check-in call
takes the same code and answers the same way, and records the arrival when the verdict is valid.
So a gate that both admits and records makes one call, not two — the separate check in step 2
is for a reader that only validates, such as an exit-side scanner or a lobby display.
The check-out call is its mirror, for gates that read people out as well as in.
Both are safe to call on every scan. Alongside the verdict they return action, saying what was
actually recorded:
action | When you get it |
|---|---|
checkedIn | First arrival — the badge moves to Visiting |
alreadyCheckedIn | The visitor was already inside. Nothing was written |
reCheckedIn | They had checked out and came back. The check-out was cleared |
checkedOut | The badge moves to Left |
alreadyCheckedOut | Already recorded. The departure time was left alone |
none | Nothing was recorded — a refused scan, a long term badge, or someone leaving who never checked in |
Two behaviours worth knowing before you write the gate logic:
- Leaving is more permissive than arriving. Check-out accepts any badge it can resolve,
expired ones included, so nobody is held inside a building because their pass lapsed during a
meeting. The departure is recorded for anyone who actually checked in; for anyone who did not,
the gate still opens and
actioncomes back asnonerather than inventing a visit. - Coming back after checking out re-admits, provided the visit covers that building. Verify
reports
alreadyCheckedOutand refuses; check-in on the same code re-opens the visit. That is the one place where the two calls deliberately disagree, and it is why a gate should call check-in rather than acting on verify’s answer itself.
A long term badge — the pass someone who comes every week carries — has no visit to open, so
action is always none for one. A valid one still opens the gate, which is the point of it.
Those have their own
endpoints
with validate and invalidate actions, so your side can switch a pass off without deleting the
person.
4. Room doors from bookings
A different problem, and worth separating: not a visitor at a lobby gate, but a member of staff at a meeting-room door. Nobody scans anything — the door has to know, in advance, who booked the room and when.
- Store each person’s card number against their Offision user with the set access card call
(
UserCard,UserCard2orUserCard3, so someone can carry more than one), and clear it with remove access card when the card comes back. This needsuser.readwrite. - Subscribe to booking changes with the resource appointment subscription, giving your callback URL and the resources you care about. Offision posts to that URL when a booking on them is made, moved or cancelled.
- On each callback, match the bookable resource id to the door your side controls, read the organiser and attendees, and turn their card numbers into a permission for that window.
- Re-read the day with the resource appointment query whenever your side reconnects. Treat the callback as a nudge and the query as the truth — a missed callback is otherwise invisible.
If the room door takes a code rather than a card, the bookable resource access keys are the other route: read a room’s one-time, daily or static keys, and subscribe to the daily and one-time keys to be pushed each new one as it rotates.
5. Check it worked
Test all four of these, because they fail independently:
- A good badge. Scan a real one during its period. You should get
valid,isGrantedtrue and the visitor’s name, and the barrier should open. - The write-back. Look at that badge in Offision afterwards. It should have moved to Visiting, and the host should have been notified.
- The same badge again. Scan it a second time. It must still admit, come back as
alreadyCheckedIn, and leave the check-in time exactly as it was. - A bad badge. Deliberately scan a cancelled badge, and one for tomorrow. Both must be refused.
The last one is the test people skip. A reader that has only ever been tried with a valid badge is a reader that admits everyone.
When it goes wrong
| What you see | Usual cause |
|---|---|
invalid_client on the token call | Client id or secret copied with surrounding whitespace, or the secret has been regenerated since |
| Every badge is admitted, including expired and cancelled ones | The gate is acting on the HTTP status. A refused scan is a 200 — the answer is isGranted in the body |
| The token works, every gate call returns 403 | The credential has visitor.read but not visitor.readwrite. All three gate calls are POST, so read-only is refused |
| Calls work from one server and 401 from another | The credential’s IP restriction does not list that server’s outbound address |
notFound, for a code that is printed on the badge | The code was mangled in transit — trimmed, upper-cased, or the scanner sent the whole URL rather than the code inside it. The call itself accepts any of the four code kinds |
| Every visitor’s check-in time is the time they last walked past the gate | Something is calling check-in on a schedule rather than on a scan. A scan on re-entry returns alreadyCheckedIn and writes nothing |
| Every badge stays at Await and reception sees nobody arrive | The gate is calling verify, not check-in. Verify records the scan and nothing else |
| A returning visitor is refused | Verify answers alreadyCheckedOut for someone who has left. Call check-in, which re-admits them |
| The arrival is recorded but the Offision door never opens | Door release follows a check-in made at an Offision panel only |
| A long term badge opens the gate but nothing is recorded | Expected. A long term badge has no visit to open, so action is always none |
| Booking callbacks fire for an hour, then stop | The subscription expired. It lasts 60 minutes by default and a day at most, and has to be renewed |
| The room door opens for the organiser but not the attendees | Only the organiser has a card number stored against their user |
