Create a map for a floor

1. Pick the floor

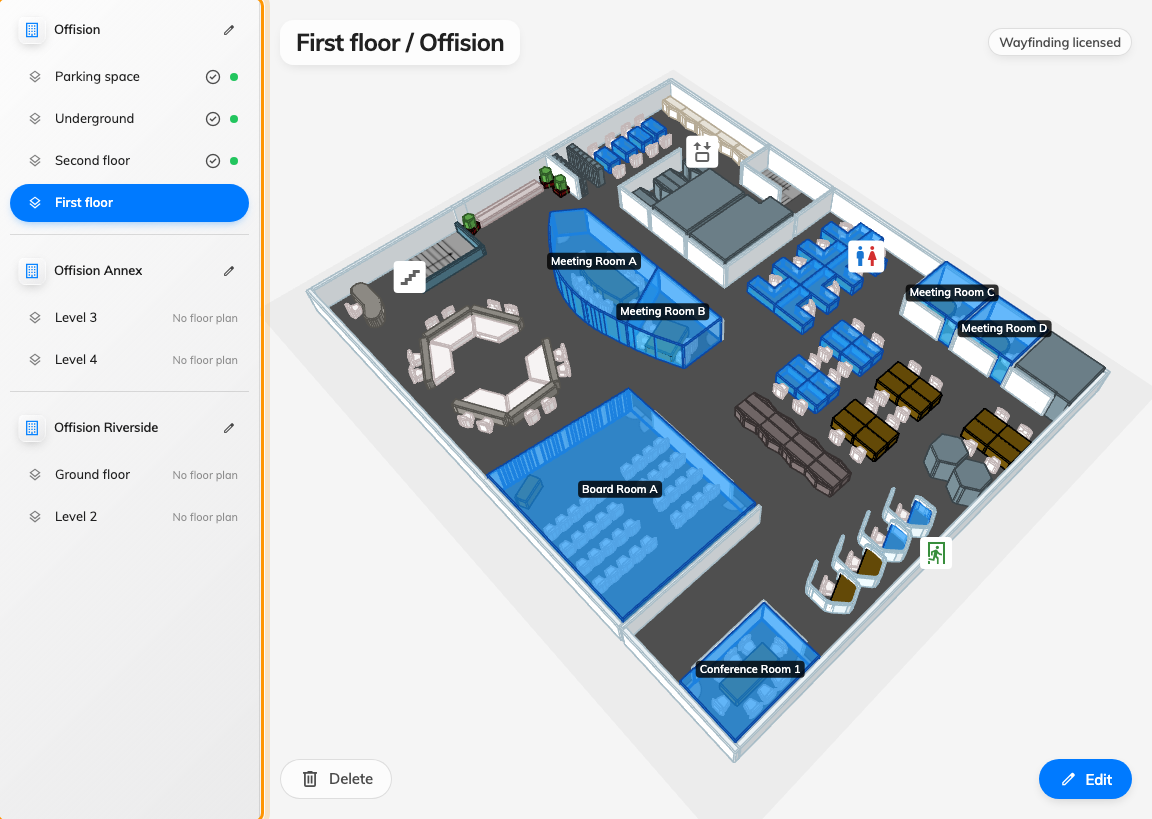

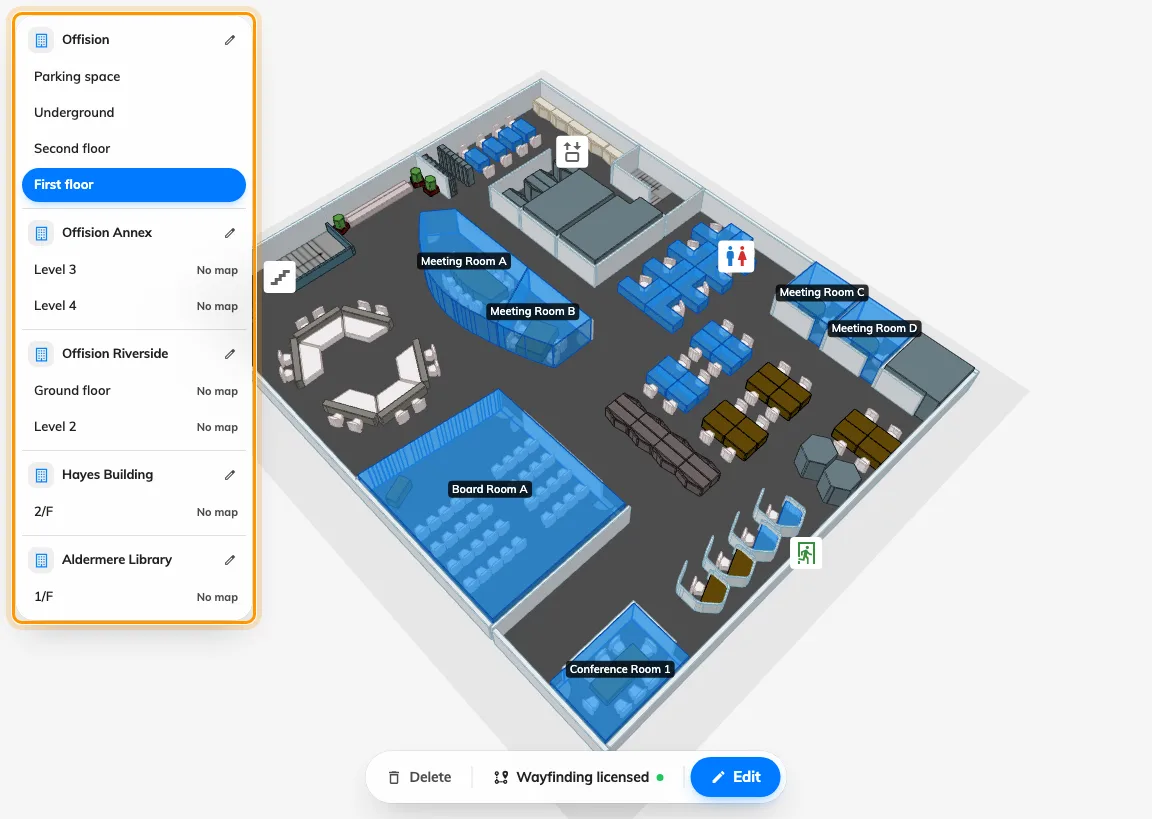

Open Map. The list down the middle is your buildings and their floors. A floor that already has a map carries a tick; one that does not says No floor plan. Selecting a floor shows what is on it.

Then Create map on a floor with nothing on it, or Edit at the bottom of one that already has a map.

2. Choose how to start

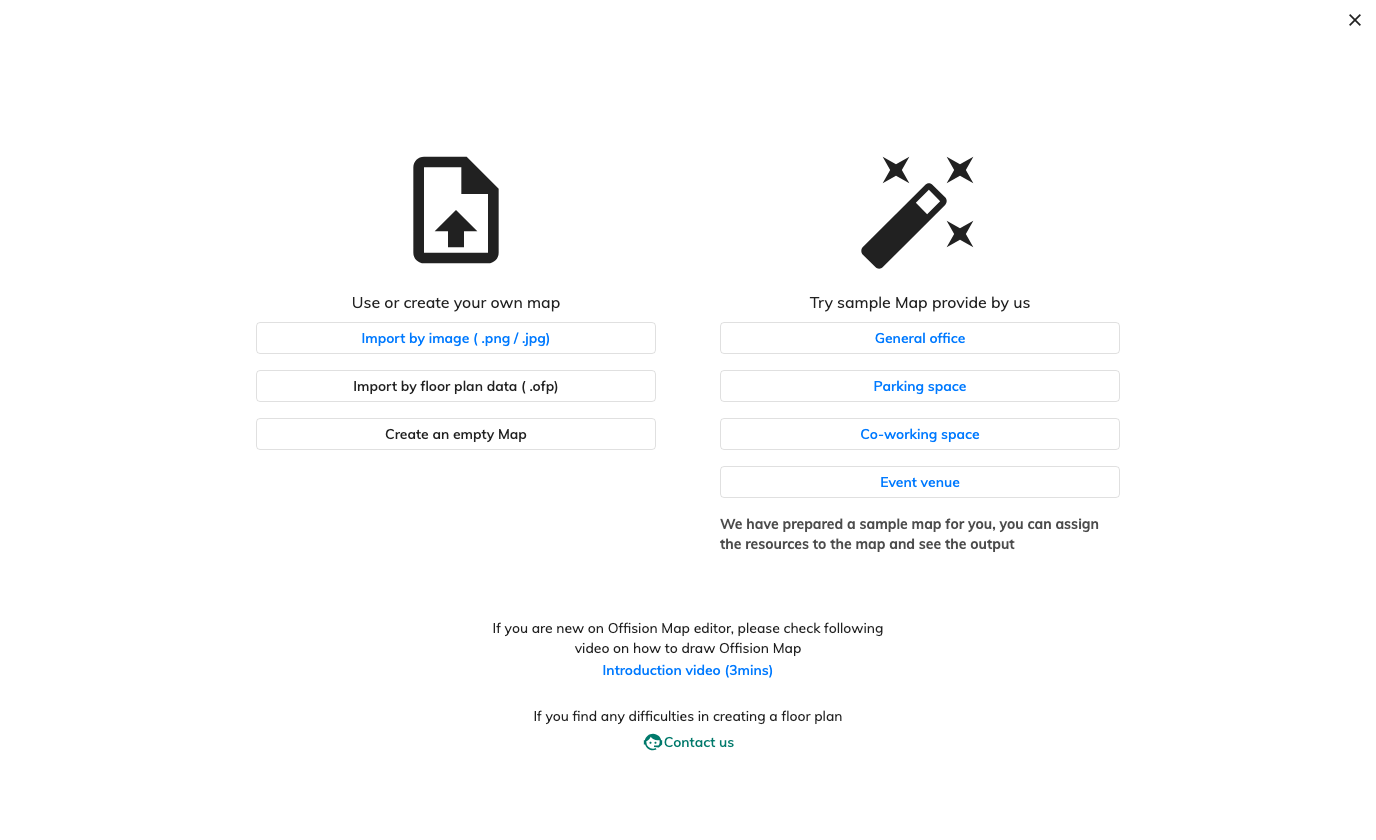

The editor opens on a screen with two columns, and which one you use depends on whether you already have a plan.

Use or create your own map

• Import by image ( .png / .jpg) — the usual choice. You bring a picture of the plan and trace over it. PNG and JPEG only.
• Import by floor plan data ( .ofp) — an Offision map exported from another floor or another tenant, which arrives complete.
• Create an empty Map — a blank floor to draw from scratch. Reasonable for a simple rectangular floor, slow for anything else.

Try sample Map provide by us

Four ready-made floors — General office, Parking space, Co-working space and Event venue. They are worth ten minutes even if you intend to draw your own: a sample gets you to the part that matters, which is linking your rooms and desks to it, before you have committed to anything.

3. Make the floor image, if you need one

The image is only ever traced over, so it does not have to be beautiful — it has to be straight, to scale, and readable. Two three-minute walkthroughs are linked from the import dialog itself, and they are the shortest route if you are starting from a PDF or a printout:

• Making the plan in PowerPoint
• Making the plan in Photoshop

Keep the long edge at or under 4096 pixels. Larger images are scaled down before they are drawn, so the extra pixels cost loading time and buy nothing — and on panels and kiosks the limit is lower still.

4. State the floor’s real width

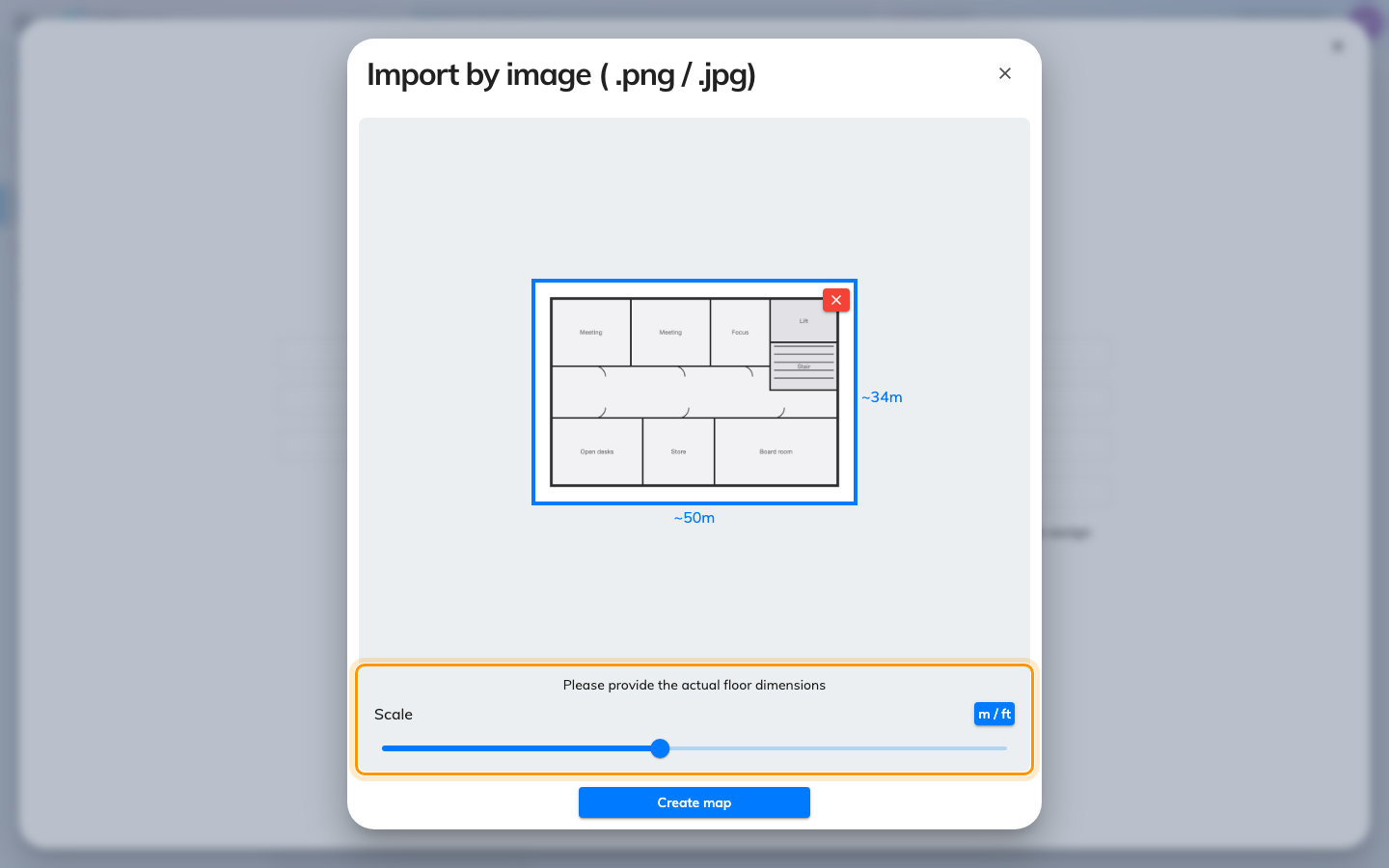

After you choose an image, the editor asks for the actual floor dimensions and gives you a Scale slider, in metres or feet.

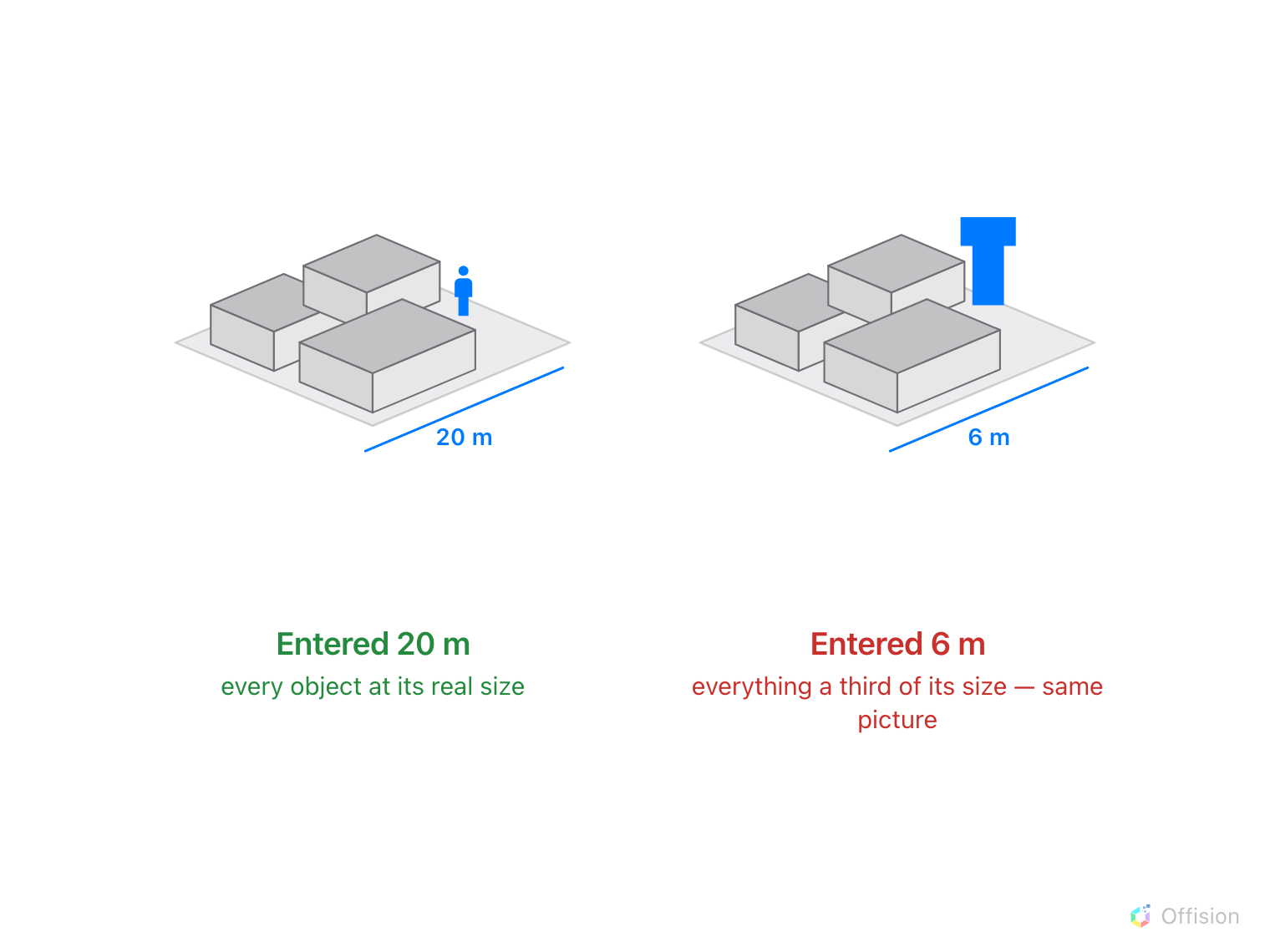

This is the most consequential click in the article. It is not the image’s size; it is how wide that floor is in the building. Every measurement afterwards — object sizes, heights, the clearance a walking route keeps from a wall — is derived from it, so a floor entered at half its real width produces a map that looks perfectly normal and is wrong everywhere it matters.

Take the number off the plan you are tracing rather than estimating it. Then Create map.

5. Draw, then save

You land in Design mode with your image behind the canvas, ready to trace. That is its own article — see Draw the rooms and furniture.

Nothing reaches the server until you save. Save keeps the editor open; the arrow beside it offers Save & Close. Closing with unsaved work asks first, and a session that ends badly is offered back to you next time.

6. Check it worked

Close the editor and look at the floor list. The floor should now carry a tick instead of No floor plan, and the preview beside it should show your map in 3D — which is also the fastest way to notice that the scale is wrong, because a floor at the wrong width looks obviously too tall or too flat once it has walls.

What this does not cover

• The rooms and desks themselves. A new map has shapes on it and nothing linked to them — see What an Offision map is made of for what that link is and why it is a separate job.
• Replacing a plan later. Importing again over an existing map warns you that it overwrites, and it means it. To change only the picture behind the drawing, use Update floor image in the tool rail instead.
• Other floors. A map is one floor. A building with four floors is four maps — though an .ofp export from one is a reasonable starting point for the next if the floors are alike.
